Applications
Solar tracking & cleaning systems, HVAC systems, Handheld power tools
Description
BO22 is a 12V & 24V BLDC motor. With a compact size of 21mm diameter and 14.5mm height, this motor is available with or without sensors. It can be combined with planetary gearboxes or spur gearboxes to meet specific requirements.
Additionally, BLDC Motor Drivers, dust cover, FFC outputs, and customised shafts can also be provided upon special request. For detailed insights, refer to the BLDC motor diagram given below to better understand its structure and dimensions.
Standard Data
| Motor Type |
Outrunner Brushless DC motor |
| Ambient Temperature Operation |
9N - 8P |
| Storage & Transport Temperature |
-40°C to +100°C |
| Ingress Protection Rating |
-60°C to +120°C |
| Life expectancy |
IP30 (As per IEC 60529) |
| Configuration |
≥5000 hours @ Rated Torque |
Available Customisations
| Customized motor speed |
| Dust cover |
| 26 AWG x 200 mm ends tinned & stripped |
| FFC Output |
| Customized Shaft |
Technical Data
| Attributes |
Units |
BO22 |
| Model Number |
- |
BO2215 |
| Supply Voltage |
V DC |
12 |
24 |
| Dimensions (Dia x Height) |
mm |
21x 14.5 |
21x 14.5 |
| Weight |
g |
18 |
18 |
| Winding Class |
°C |
155 °C |
155 °C |
| No Load Speed |
RPM |
11380 |
10350 |
| No Load Current |
mA |
0.1 |
0.07 |
| Rated Speed |
RPM |
7520 |
7500 |
| Rated Current |
A |
0.6 |
0.3 |
| Rated Torque |
cNm |
0.5 |
0.5 |
| Rated Power (Output) |
W |
3.9 |
3.9 |
| Speed @ Max Power |
RPM |
6408 |
5236 |
| Current @ Max Power |
A |
0.7 |
0.4 |
| Torque @ Max Power |
cNm |
0.6 |
0.8 |
| Max Power (Output) |
W |
4 |
4.2 |
| Stall Current |
A |
1.3 |
0.8 |
| Stall Torque |
cNm |
1.2 |
1.2 |
| Inductance |
µh |
506 |
2556 |
| Resistance |
Ω |
7.8 |
27.2 |
| Torque Constant |
cNm/A |
0.9 |
1.8 |
| Speed Constant |
rpm/V |
626.7 |
312.5 |
Compatible Products
| Spur Gearbox |
GB2P |
GB5P |
| Planetary Gear Box (IP) |
GB22P |
GB22K |
| Driver |
Weber Lite |
|

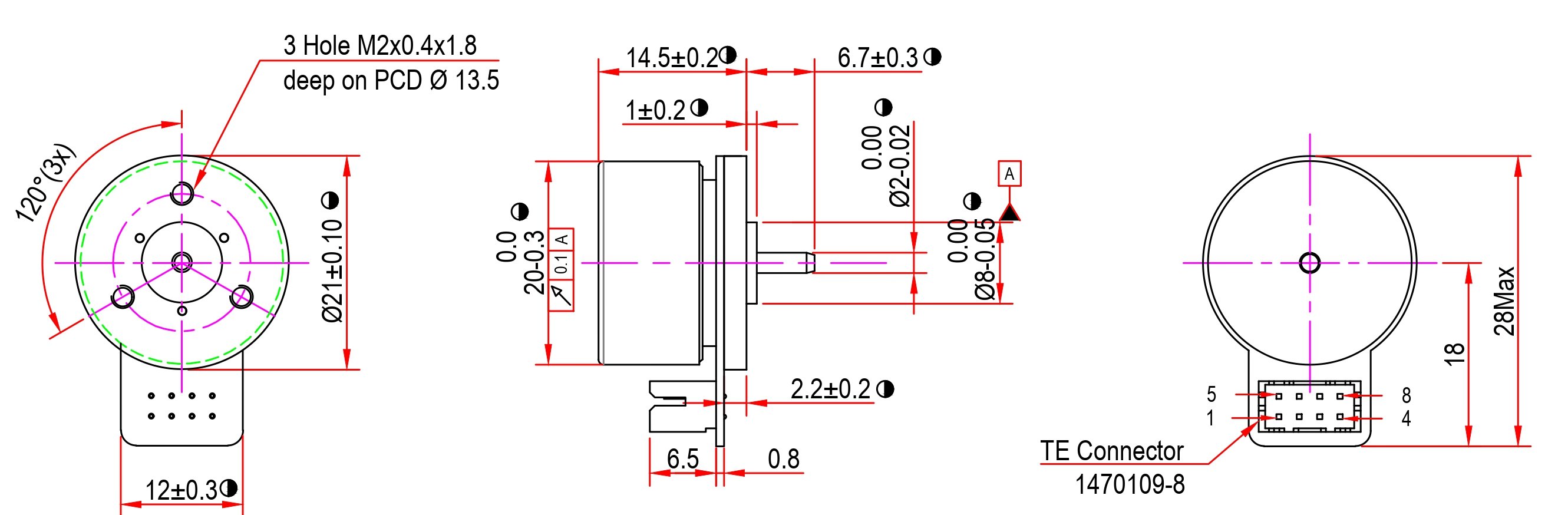

Dimensional Drawing
| Pin No. |
Pin Connection |
Description |
Colours |
| Pin 1 |
GND |
Ground Motor |
Black |
| Pin 2 |
U |
Winding 1 Motor |
Green |
| Pin 3 |
V |
Winding 2 Motor |
Purple |
| Pin 4 |
W |
Winding 3 Motor |
Blue |
| Pin 5 |
HU |
Hall Sensor 1 |
White |
| Pin 6 |
HV |
Hall Sensor 2 |
Orange |
| Pin 7 |
HW |
Hall Sensor 3 |
Brown |
| Pin 8 |
VCC |
Vhall4.5....24V DC |
Red |
