Mechtex - Planetary Gearboxes


Established in 1967, Mechtex has been a trusted manufacturer of high-quality planetary gearboxes, delivering robust and efficient solutions for various applications.

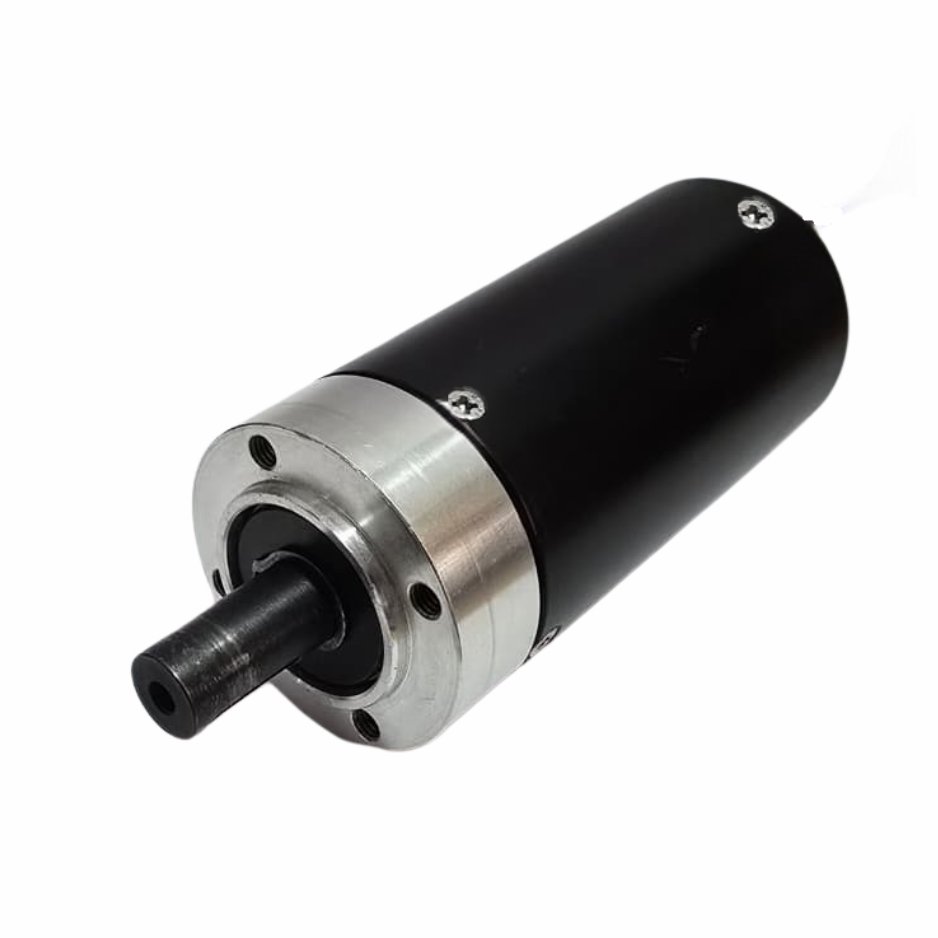

Our planetary gearboxes feature a 4-stage design with gear ratios ranging from 3.71:1 to 938.85:1 and a torque carrying capacity of up to 300 Nm. We offer a range of sizes including 22 mm, 32 mm, 42 mm, 52 mm, 62 mm, 82 mm and 122 mm planetary gearboxes, available in both plastic and metal bodies. These gearboxes are perfect for integrating with BLDC Motors, Hybrid Stepper Motors, and DC Geared Motors, enhancing versatility and performance.

We offer a range of customisation options for our planetary gearbox design to meet specific project requirements. These include customised shafts with precise tolerance limits, custom mounting options with external mounting plates, and encoders for accurate performance feedback. Our gearheads and gear reducers are designed to provide the exact performance your application demands.

Mechtex planetary gearboxes provide several advantages:

Ideal planetary gearbox applications include solar cleaning robots, robotic lawnmowers, and telecommunication antennas. Whether you need high torque, compact design, or stability, Mechtex’s customisable planetary gearboxes deliver reliable and efficient performance tailored to your needs.

FEATURES OF Planetary Gearbox

Compact Design
Compact Design

It enhance enhance portability, and provide efficient performance for applications

High Efficiency
High Efficiency

Allows precise and controlled movements, ideal for slow and accurate motion applications

High Toqrue Carrying Capacity
High Toqrue Carrying Capacity

Ensures reliable power transmission, allowing applications to handle heavy-duty tasks with efficiency and precision

Precise Motion Control
Precise Motion Control

Achieve reliable and smooth movements, ensuring optimal performance of application

Industries We Served

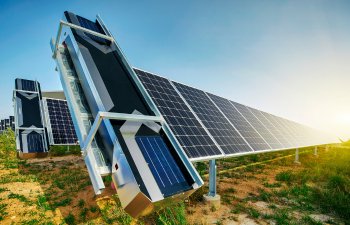

Solar Cleaning Bot

Solar Cleaning Bot

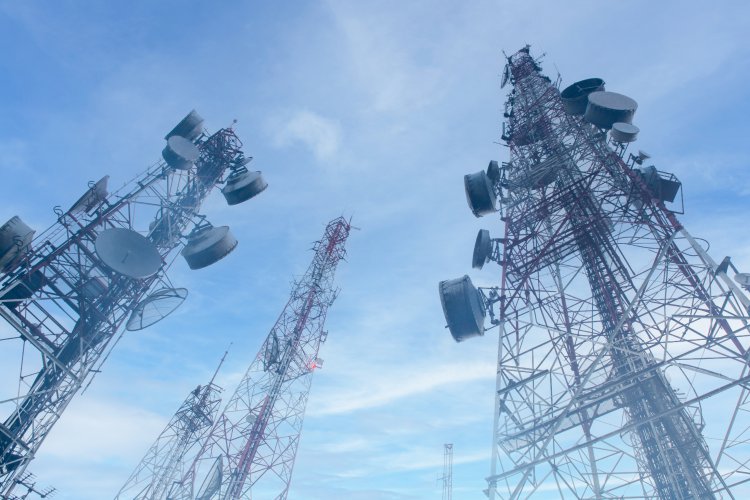

Telecommunication

Telecommunication

Robotic Lawn Mover

Robotic Lawn Mover

Frequently Asked Questions (FAQs)

A planetary gearbox, also known as an epicyclic gearbox, is a type of gearbox that uses a system of gears, called planetary gears, to transmit rotational force and speed between a motor and an output shaft.
The 4 main components of a planetary gear set are the sun gear, planet gears, ring gear, and carrier.
There are several reasons why someone would use a planetary gearbox. It is compact and has a high power density, meaning it can transmit a lot of torque in a relatively small size.
The gear ratio of a planetary gearbox is the ratio of the speed of the input shaft to the speed of the output shaft.
The principle of planetary gears involves the use of multiple gears, known as sun, planet, and ring gears, to transfer power and change the speed and torque of rotation in a system.
