Applications
Solar tracking & cleaning systems, HVAC systems, Hand-held power tools
Description
BO52 is a 12V, 24V & 36V BLDC motor. With a compact size of 52 mm diameter and 26.8 mm, 31.8 mm & 43.1 mm height, this motor is available with or without sensors. It can be combined with planetary gearboxes or spur gearboxes to meet specific requirements.
Additionally, BLDC Motor Drivers, dust covers (Up to IP60), Inductive/magnetic encoder available, and customised shafts can also be provided upon special request. For detailed insights, refer to the BLDC motor diagram given below to better understand its structure and dimensions.
Standard Data
| Motor Type |
Outrunner Brushless DC motor |
| Ambient Temperature Operation |
12N - 16P |
| Storage & Transport Temperature |
-40°C to +100°C |
| Ingress Protection Rating |
-60°C to +120°C |
| Life expectancy |
IP30 (As per IEC 60529) |
| Configuration |
≥5000 hours @ Rated Torque |
Available Customisations
| Customized motor speed |
| Dust cover (Upto IP60) |
| 22 AWG x 200 mm ends tinned & stripped |
| Inductive/magnetic encoder available |
| Customized Shaft |
| Hollow shaft for robotics and gimbal applications |
Technical Data
| Attributes |
Unit |
BO52 |
| Model Number |
- |
BO5226 |
BO5231 |
BO5240* |
| Supply Voltage |
V DC |
12 |
24 |
12 |
24 |
24 |
36 |
| Dimensions (Dia x Height) |
mm |
52 x 26.8 |
52 x 26.8 |
52 x 31.8 |
52 x 31.8 |
52 x 43.1 |
52 x 43.1 |
| Weight |
g |
205 |
219 |
263 |
258 |
362 |
376 |
| Winding Class |
°C |
155 |
155 |
180 |
180 |
180 |
180 |
| No Load Speed |
RPM |
4400 |
4200 |
4400 |
4450 |
4130 |
4460 |
| No Load Current |
mA |
530 |
220 |
70 |
350 |
550 |
400 |
| Rated Speed |
RPM |
3000 |
3280 |
3200 |
3510 |
3500 |
3950 |
| Rated Current |
A |
8 |
3.6 |
10 |
5 |
7 |
5 |
| Rated Torque |
cNm |
20 |
20 |
26 |
26 |
39 |
35 |
| Rated Power (Output) |
W |
63 |
69 |
87 |
96 |
143 |
145 |
| Speed @ Max Power |
RPM |
2400 |
2200 |
2420 |
2260 |
2620 |
2825 |
| Current @ Max Power |
A |
10 |
8 |
17 |
12 |
18 |
15 |
| Torque @ Max Power |
cNm |
27 |
45 |
45 |
60 |
100 |
105 |
| Max Power (Output) |
W |
68 |
104 |
114 |
142 |
274 |
310 |
| Stall Current |
A |
20 |
16 |
39 |
22 |
40 |
35 |
| Stall Torque |
cNm |
48 |
80 |
100 |
100 |
185 |
220 |
| Inductance |
µh |
120 |
506 |
90 |
320 |
200 |
386 |
| Resistance |
Ω |
0.24 |
0.6 |
0.12 |
0.4 |
0.2 |
0.3 |
| Torque Constant |
cNm/A |
3 |
6 |
3 |
5 |
5 |
7 |
| Speed Constant |
rpm/V |
250 |
137 |
267 |
146 |
146 |
110 |
* Available in 12N - 8P configuration
Compatible Products
| Spur Gearbox |
GB4 |
GBU/V |
GBM |
GBW |
|
| Planetary Gear Box |
GB42P |
GB52P |
GB56P |
GB66P |
GB72P |
| Planetary Gear Box (IP) |
GB56P |
GB66P |
GB72P |
|
|
| Driver |
Weber Pro |
|
|
|
|

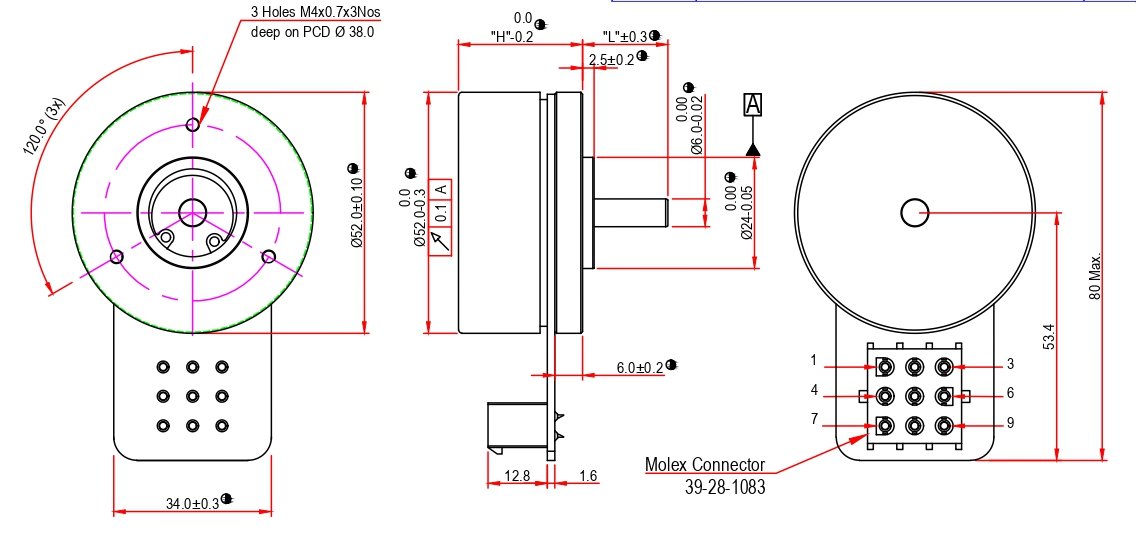

Dimensional Drawing
| Pin No. |
Description |
Pin Connection |
| Pin 1 |
Motor Winding 1 |
U |
| Pin 2 |
Motor Winding 2 |
V |
| Pin 3 |
Motor Winding 3 |
W |
| Pin 4 |
Ground |
GND |
| Pin 5 |
- |
- |
| Pin 6 |
Vhall 4.5 -24V DC |
Vhall |
| Pin 7 |
Hall Sensor 3 |
HW |
| Pin 8 |
Hall Sensor 2 |
HV |
| Pin 9 |
Hall Sensor 1 |
HU |
| Motor Code |
Motor Height “H” |
Shaft Length From Mounting "L" |
| BO5226 |
26.8 |
18.4 |
| BO5231 |
31.8 |
13.4 |
| BO5240 |
43.1 |
25.1 |
