Applications
Solar tracking & cleaning systems, HVAC systems, Hand-held power tools
Description
BO62 - VF is a 12V, 24V & 36V BLDC motor. With a compact size of 60 mm diameter and 37.5 mm height, this motor is available with or without sensors. It can be combined with planetary gearboxes or spur gearboxes to meet specific requirements.
Additionally, BLDC Motor Drivers, dust covers (Up to IP65**), and customised shafts can also be provided upon special request. For detailed insights, refer to the BLDC motor diagram given below to better understand its structure and dimensions.
Standard Data
| Motor Type |
Outrunner Brushless DC motor |
| Configuration |
12N - 16P |
| Ambient Temperature Operation |
-40°C to +100°C |
| Storage & Transport Temperature |
-60°C to +120°C |
| Ingress Protection Rating |
IP40 (As per IEC 60529) |
| Life expectancy |
≥5000 hours @ Rated Torque |
Available Customisations
| Customized motor speed |
| Dust cover (Upto IP65**) |
| 20 AWG x 200 mm ends tinned & stripped |
| Customized Shaft |
| Hollow shaft for robotics and gimbal applications |
Technical Data
| Attributes |
Unit |
BO62 |
| Model Number |
- |
BO6238 |
| Supply Voltage |
V DC |
12 |
24 |
36 |
| Dimensions (Dia x Height) |
mm |
60 x 37.5 |
60 x 37.5 |
60 x 37.5 |
| Weight |
g |
360 |
368 |
372 |
| Winding Class |
°C |
140 |
140 |
140 |
| No Load Speed |
RPM |
4100 |
4075 |
4210 |
| No Load Current |
mA |
1 |
0.6 |
0.5 |
| Rated Speed |
RPM |
3000 |
3370 |
3560 |
| Rated Current |
A |
13 |
6 |
4 |
| Rated Torque |
cNm |
35 |
35 |
35 |
| Rated Power (Output) |
W |
110 |
123 |
130 |
| Speed @ Max Power |
RPM |
2000 |
2475 |
2560 |
| Current @ Max Power |
A |
25 |
14 |
11 |
| Torque @ Max Power |
cNm |
70 |
80 |
95 |
| Max Power (Output) |
W |
147 |
207 |
255 |
| Stall Current |
A |
50 |
30 |
26 |
| Stall Torque |
cNm |
135 |
165 |
215 |
| Inductance |
µh |
63 |
250 |
528 |
| Resistance |
Ω |
0.10 |
0.2 |
0.5 |
| Torque Constant |
cNm/A |
3 |
6 |
8 |
| Speed Constant |
rpm/V |
250 |
140 |
99 |
Compatible Products
| Spur Gearbox |
GBM |
|
| Planetary Gear Box |
GB66P |
GB84P |
| Planetary Gear Box (IP) |
GB66P |
GB84P |
| Driver |
Weber Pro |
|

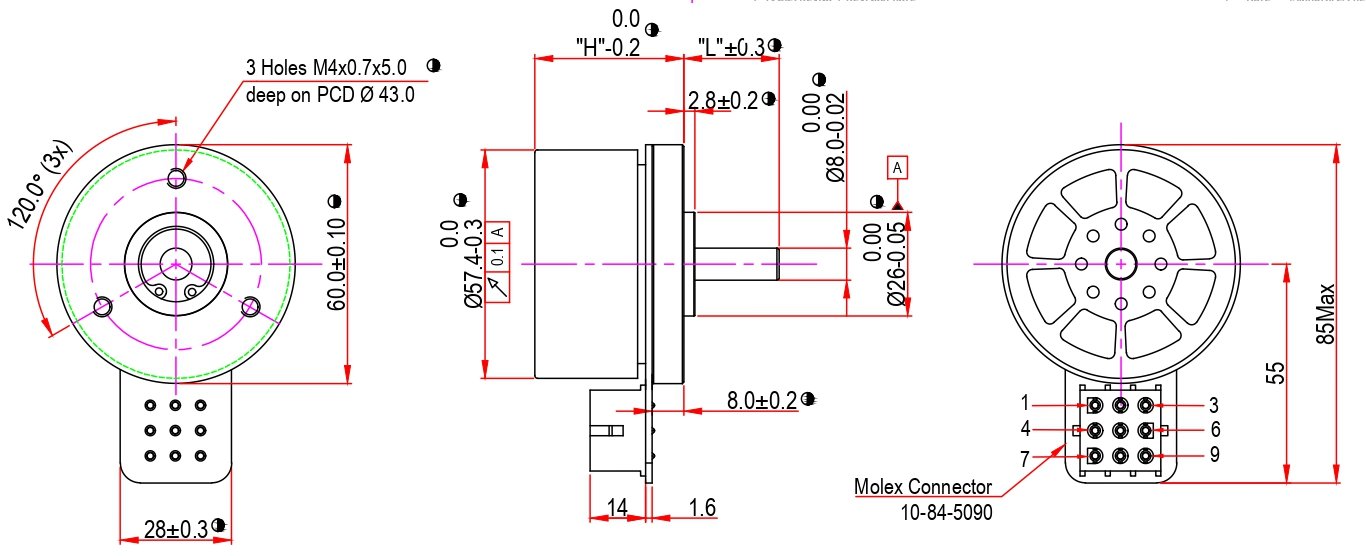

Dimensional Drawing
| Pin No. |
Pin Connection |
Description |
| Pin 1 |
W |
Motor Winding 3 |
| Pin 2 |
V |
Motor Winding 2 |
| Pin 3 |
U |
Motor Winding 1 |
| Pin 4 |
GND |
Ground |
| Pin 5 |
NC |
Not Connected |
| Pin 6 |
VCC |
Vhall 4.5 -24V DC |
| Pin 7 |
HW |
Hall Sensor 3 |
| Pin 8 |
HV |
Hall Sensor 2 |
| Pin 9 |
HU |
Hall Sensor 1 |
| Motor Code |
Motor Height “H” |
Shaft Length From Mounting "L" |
| BO6238 |
37.5 |
24 |
