Description
Mechtex DM3110 is purpose-built for FPV pilots who demand fast response, high thrust, and lightweight performance. With a KV rating between 900, this motor offers rapid acceleration and tight control, ideal for freestyle flying and racing. It delivers up to 4116 gf of thrust, giving you the power to pull off aggressive moves with confidence.
Designed to run efficiently on a 4–6 S battery setup, the DM3110 offers broad compatibility for various FPV builds. Weighing just 90 g, it helps keep your quad nimble in the air. Its Ø 37 × 27 mm form factor and 12N14P stator configuration ensure smooth performance and easy installation, making it a solid choice for serious FPV flyers looking for reliability and edge-of-the-envelope performance.
Technical Data
| KV Rating | 900 |
| Voltage Range | 4 - 6S |
| Configuration | 12N-14P |
| Dimension (OD x Height) (mm) | 38 x 27 |
| Weight (g) | 90 |
| Propeller Size | 8 x 4 x 5 |
| Max Thrust (gf) | 4116 |
| Max Continuous Power (180S) (W) | 1500 (10s) |
| Peak Current (A) | 60 (10s) |

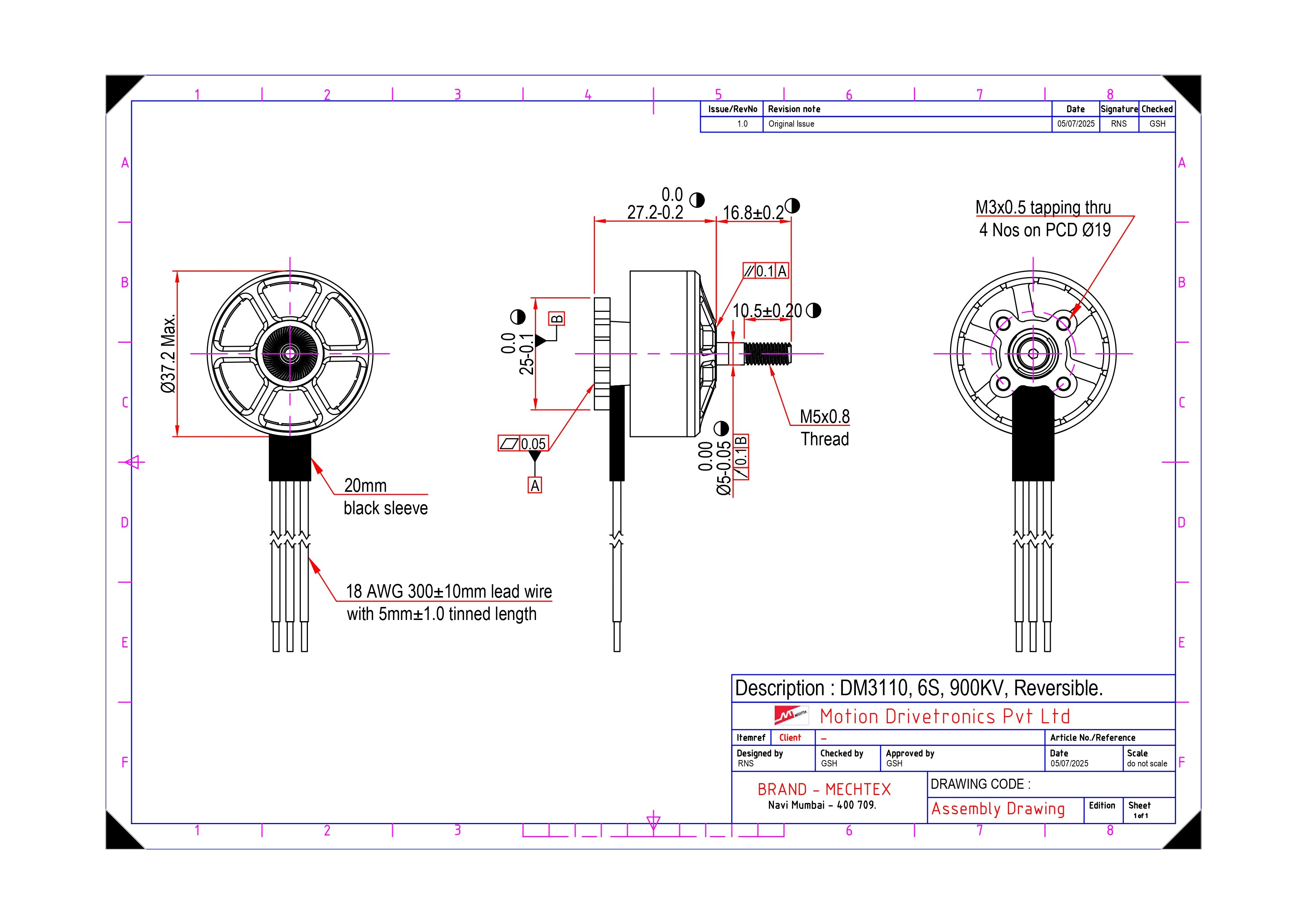

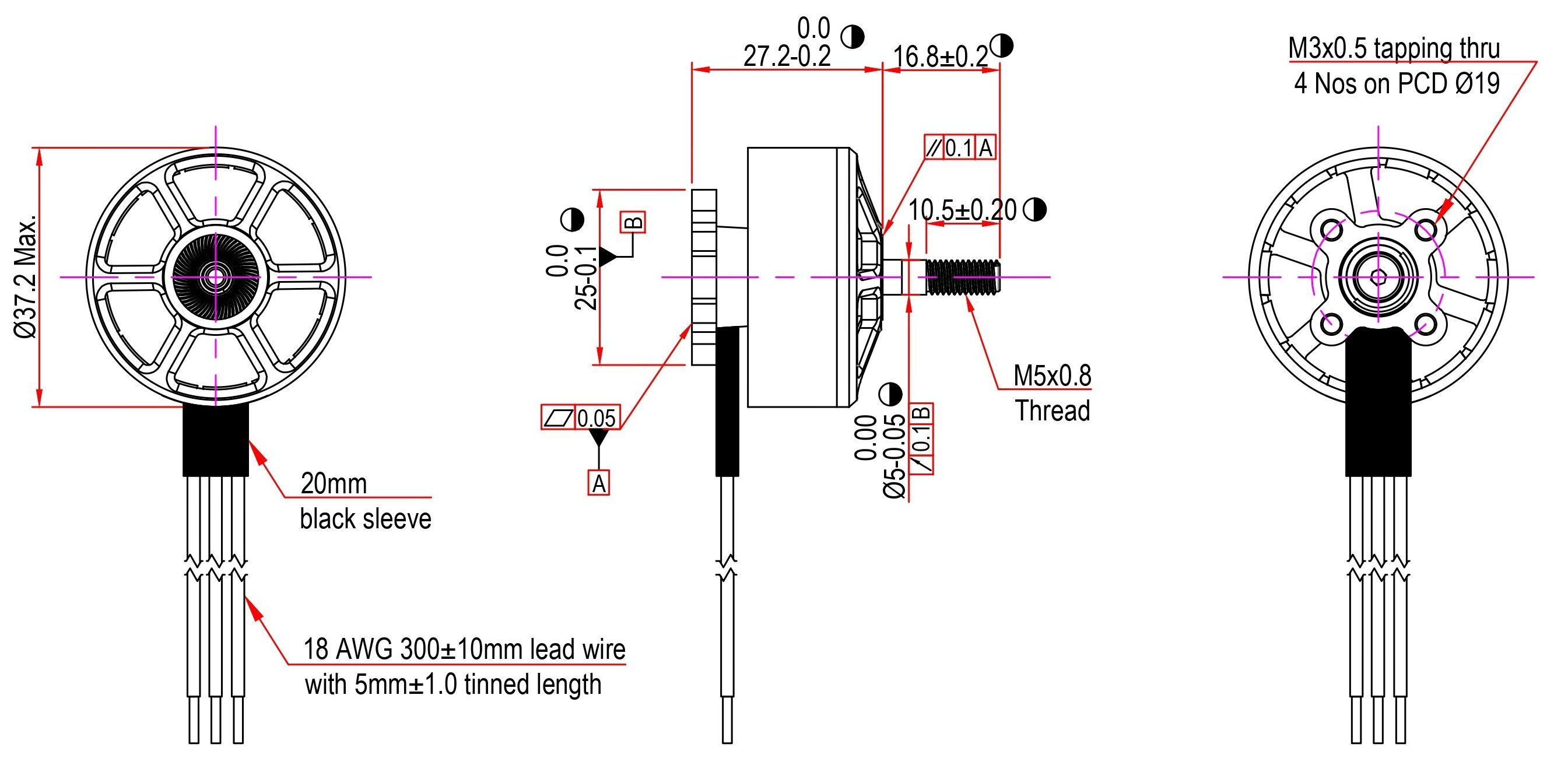

Dimensional Drawing
<
