Applications
Agriculture, Delivery, Defence, Surveillance, Mapping, Cinematography
Description
DM5006 is a highly advanced drone motor designed to deliver exceptional performance and power to every drone. It has a KV rating of 450 KV and maximum thrust of 3362 gf making it capable of propelling your drone to new heights.
It has an operating voltage of 6 - 12S and a weight of only 110 g, making it lightweight and easy to integrate into your drone's design without adding extra weight. DM5006 best drone motor for achieving superior performance and an unforgettable flying experience.
Technical Data
| KV Rating | 450 |
| Voltage Range | 6-12 S |
| Configuration | 24N-28P |
| Dimension (OD x Height) (mm) | 55.5 x 25 |
| Weight (g) | 110 |
| Propeller Size | 16 x 5.4 |
| Max Thrust (gf) | 3362 |
| Max Continuous Power (180S) (W) | 650 |
| Peak Current (A) | 27 |

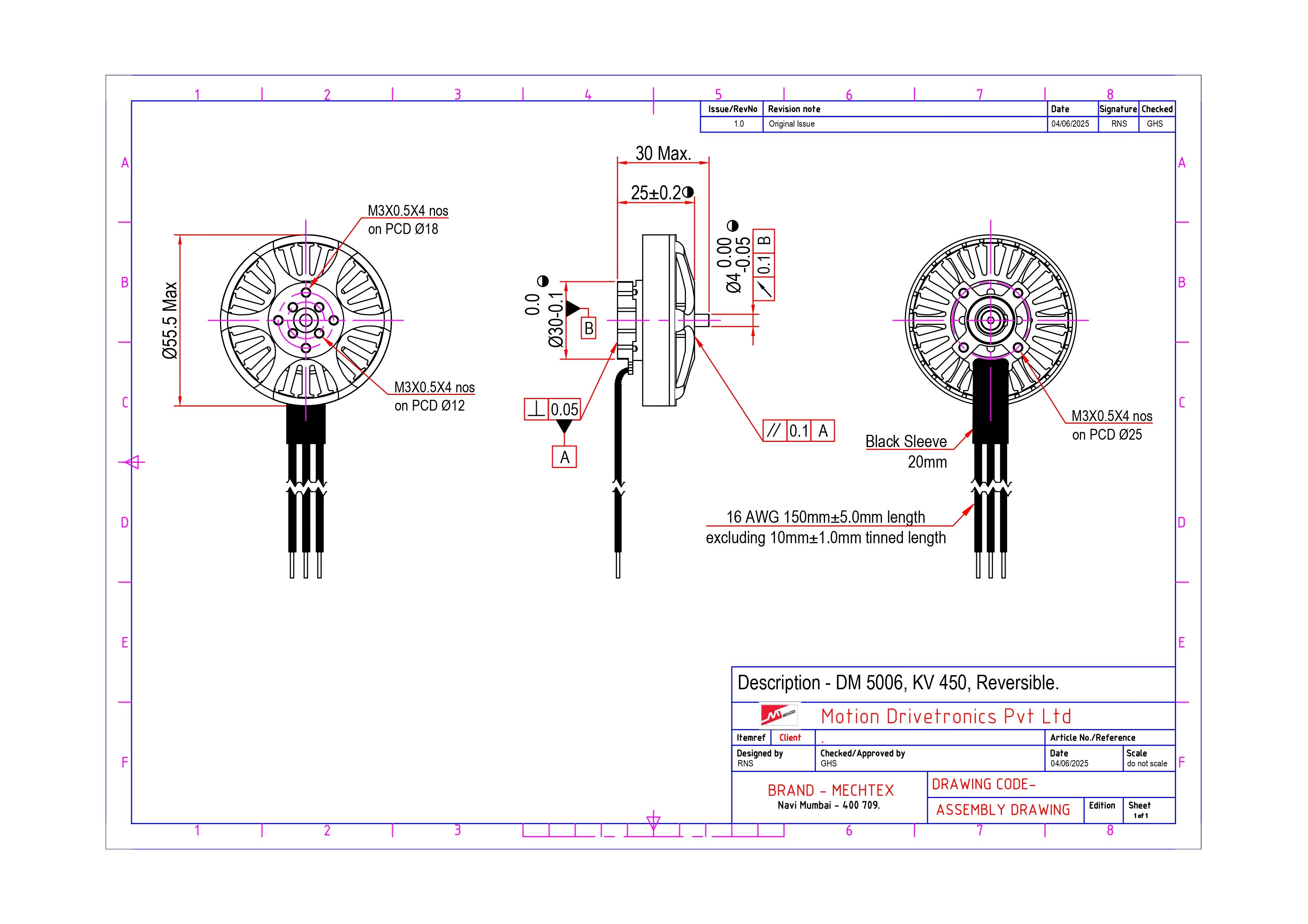

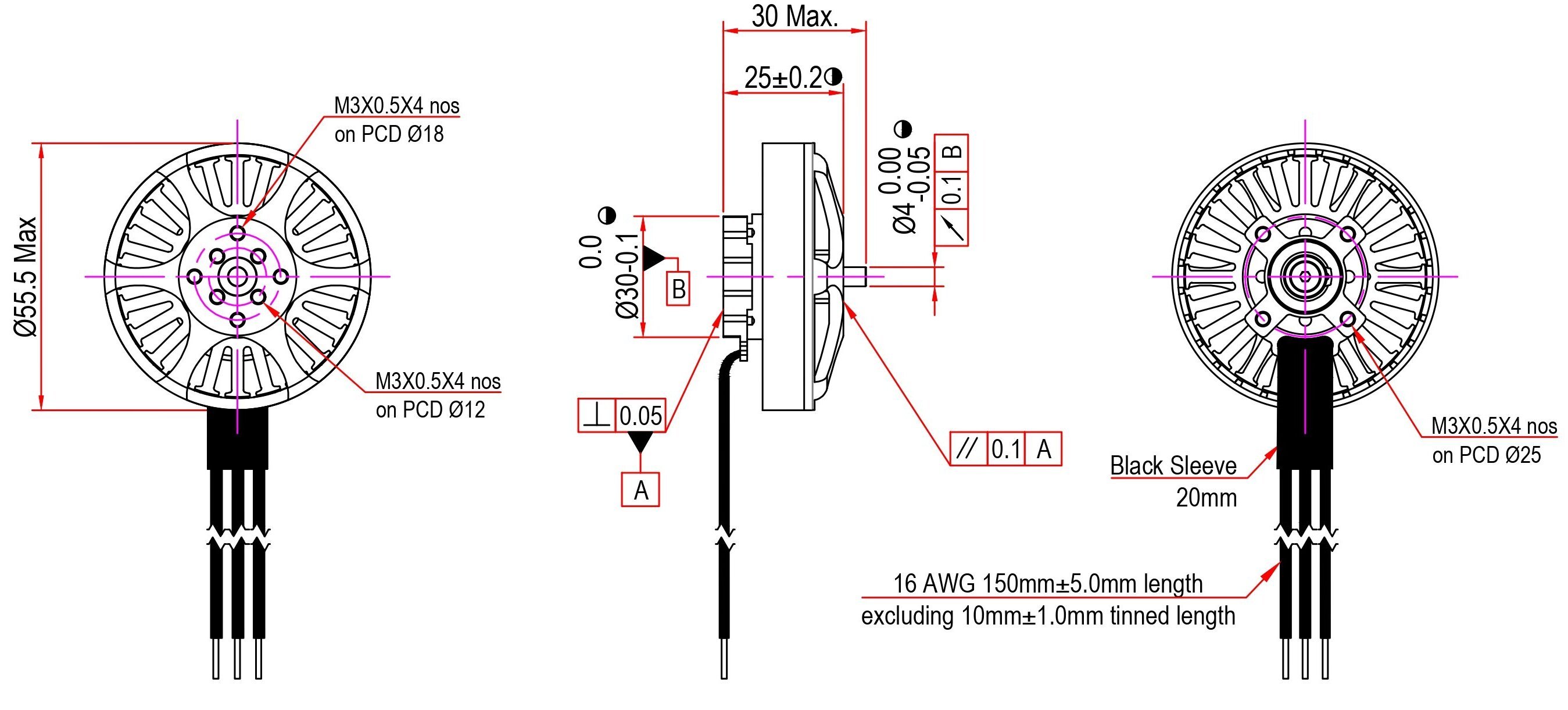

Dimensional Drawing
