GB56P

Applications

Robotic Lawn Mower Machine, Telecom Antenna, Solar Cleaning Robots, Medical Equipment, Automotive, Robotics

Description

Gearhead GB56P is specially designed to cater to heavy-duty applications in a cylindrical frame with a centre shaft. This is a planetary gearbox with all-metal gears. The entire gearhead is permanently lubricated and therefore requires no maintenance. Brushed and Brushless DC Motors up to 56mm diameter are generally mounted on this gearhead to provide a compact and yet powerful drive.

Standard Data

Gear Type	-	Spur Gears
Gear Torque	Nm	12 to 50
Axial Load	N	150
Radial Force	N	520
Output Bearings	-	Ball bearing
Output Shafts	mm	Ø 14 (others on special request)
Ambient Temperature Operations	°C	-15….+80 °C (+120°C on special request #)
Enclosure	IP	Standard IP40 & up to IP65 *On special request (As per IEC 60529)

# Corresponding o/p torque rating of gearhead will be reduced

Technical Data

Reduction Ratios	-	3.71	5.18	13.73	19.2	26.85	35*	50.89	71.16	99.51	139.14	188.61	263.73	369.76	515.63	720.99	938.85*
Number of stages	-	1	1	2	2	2	2	3	3	3	3	4	4	4	4	4	4
Torque	Nm	12	12	20	20	20	20	35	35	35	35	50	50	50	50	50	50

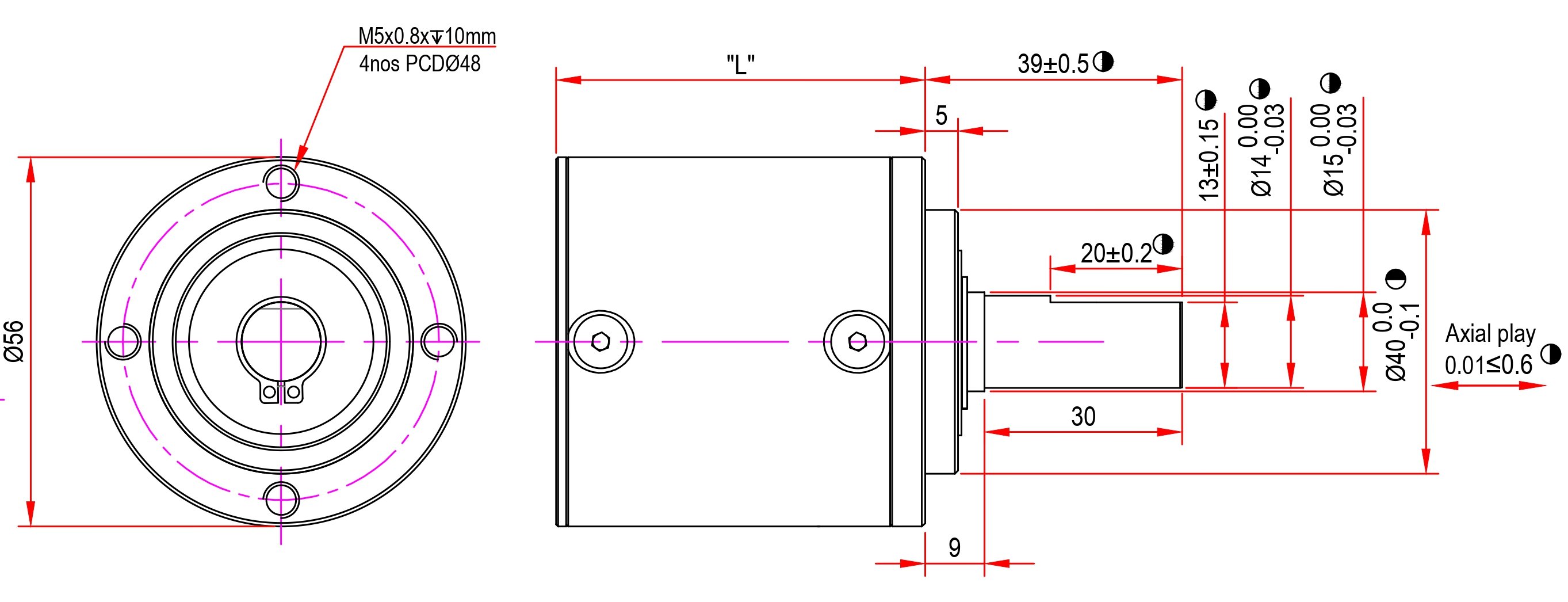

Gearbox Length	mm	52.5	52.5	64.5	64.5	64.5	64.5	76.7	76.7	76.7	76.7	88.9	88.9	88.9	88.9	88.9	88.9
