GB84P

Applications

Robotic Lawn Mower Machine, Telecom Antenna, Solar Cleaning Robots, Medical Equipment, Automotive, Robotics

Description

Gearhead GB84P is specially designed to cater to heavy-duty applications in a cylindrical frame with a centre shaft. This is a planetary gearbox with all metal gears, with plastic gears in the first stage. Ball bearings are used for higher torque requirements, along with their increased life. The entire gearhead is permanently lubricated and therefore requires no maintenance. Brushed and Brushless DC Motors up to 82 mm diameter are generally mounted on this gearhead to provide a compact and yet powerful drive.

Standard Data

Gear Type	-	Spur Gears
Gear Torque	Nm	40 to 200
Axial Load	N	200
Radial Force	N	1000
Output Bearings	-	Ball bearing
Output Shafts	mm	Ø 25 (others on special request)
Ambient Temperature Operations	°C	-15….+80 °C (+120°C on special request #)
Enclosure	IP	Standard IP40 & upto IP65 * On special request (As per IEC 60529)

# Corresponding o/p torque rating of gearhead will be reduced

Technical Data

Reduction Ratios	-	3.71	5.18	13.73	19.2	26.85	35*	50.89	71.16	99.51	139.14	188.61	263.73	369.76	515.63	720.99	938.85*
Number of stages	-	1	1	2	2	2	2	3	3	3	3	4	4	4	4	4	4
Torque	Nm	40	40	80	80	80	80	140	140	140	140	200	200	200	200	200	200

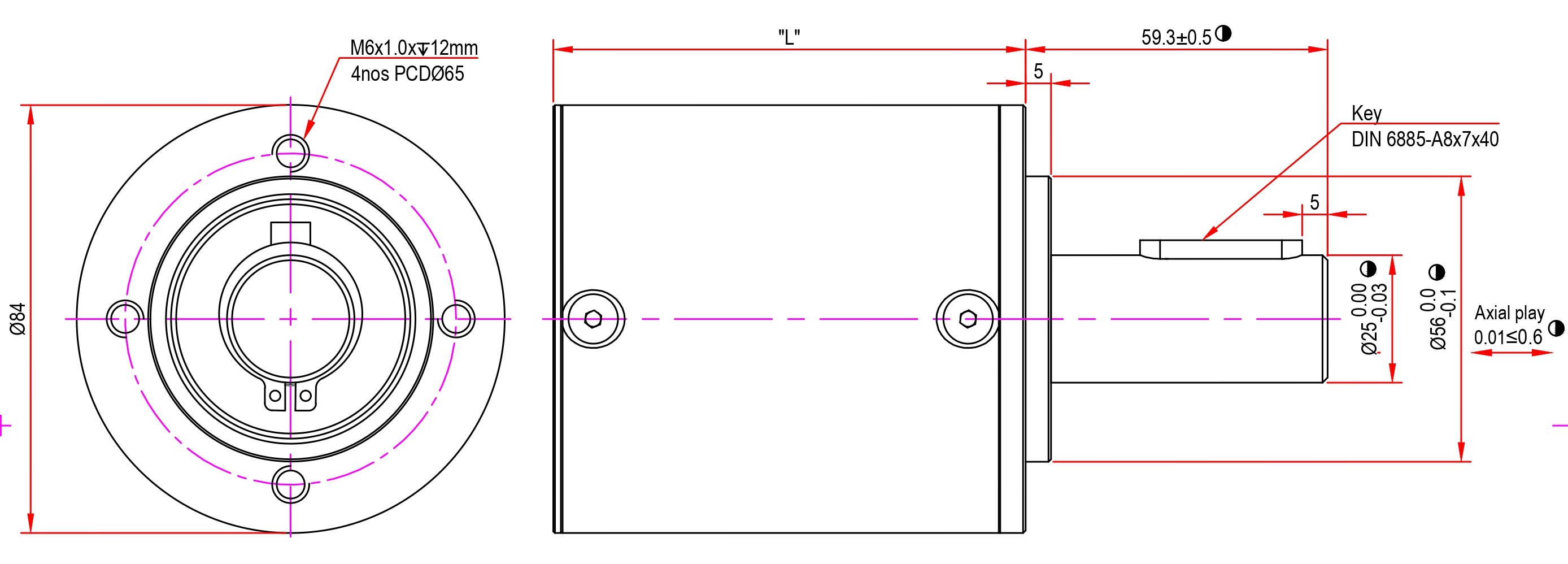

Gearbox Length	mm	74.8	74.8	97.8	97.8	97.8	97.8	121	121	121	121	144.2	144.2	144.2	144.2	144.2	144.2
