Applications
Agriculture, Delivery, Defence, Surveillance, Mapping, Cinematography
Description

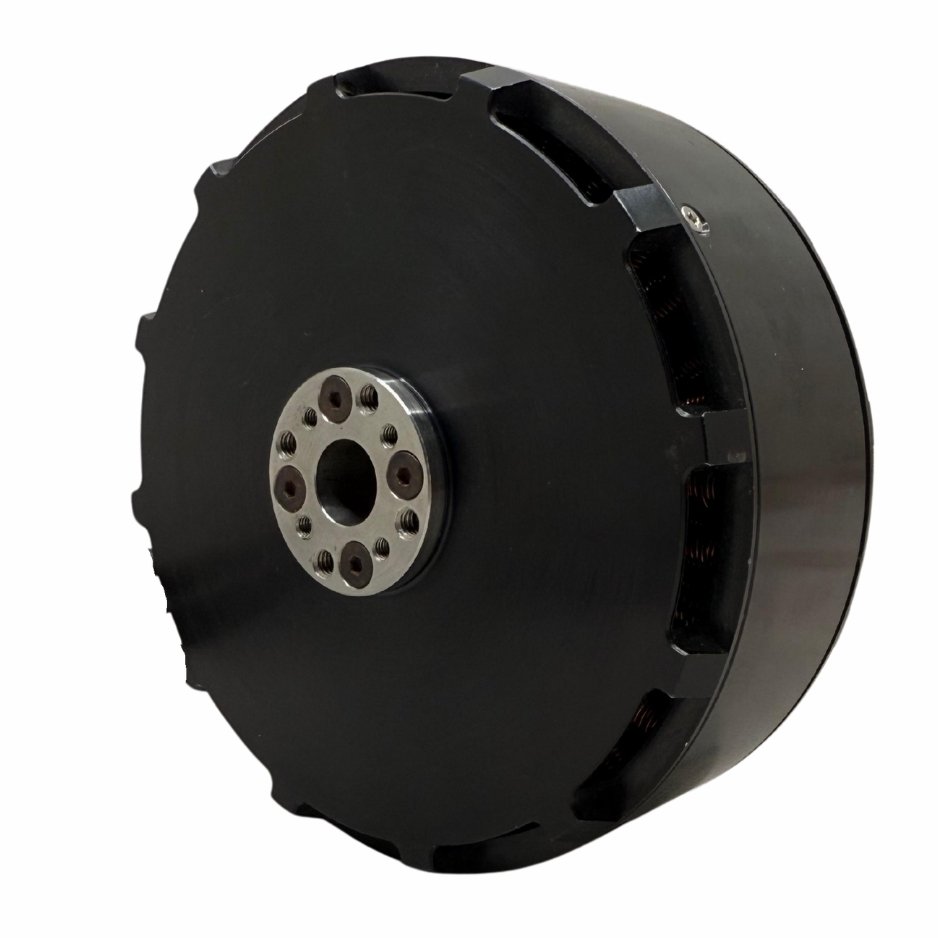

DM1020 is the best big drone motor. It has a KV rating of 160 KV and a thrust of 17810 - 25870 gf to boast unparalleled speed and efficiency, making it the perfect choice for high-performance drones.
It has an operating voltage of 12 - 14 S and a weight of only 860 g to handle heavy payloads, making it ideal for professional and commercial drone applications. This big drone motor is designed with precision and durability in mind, using high-quality materials and advanced technology to ensure long-lasting performance.
Technical Data
| KV Rating | 160 |
| Voltage Range | 9- 12S |
| Configuration | 36N - 42P |
| Dimension (OD x Height) (mm) | 102.2 x 44 |
| Weight (g) | 860 |
| Propeller Size | 30 x 10.5 |
| Max Thrust (gf) | 17810 - 25870 |
| Max Continuous Power (180S) (W) | 3500 - 7000 |
| Peak Current (A) | 120 |

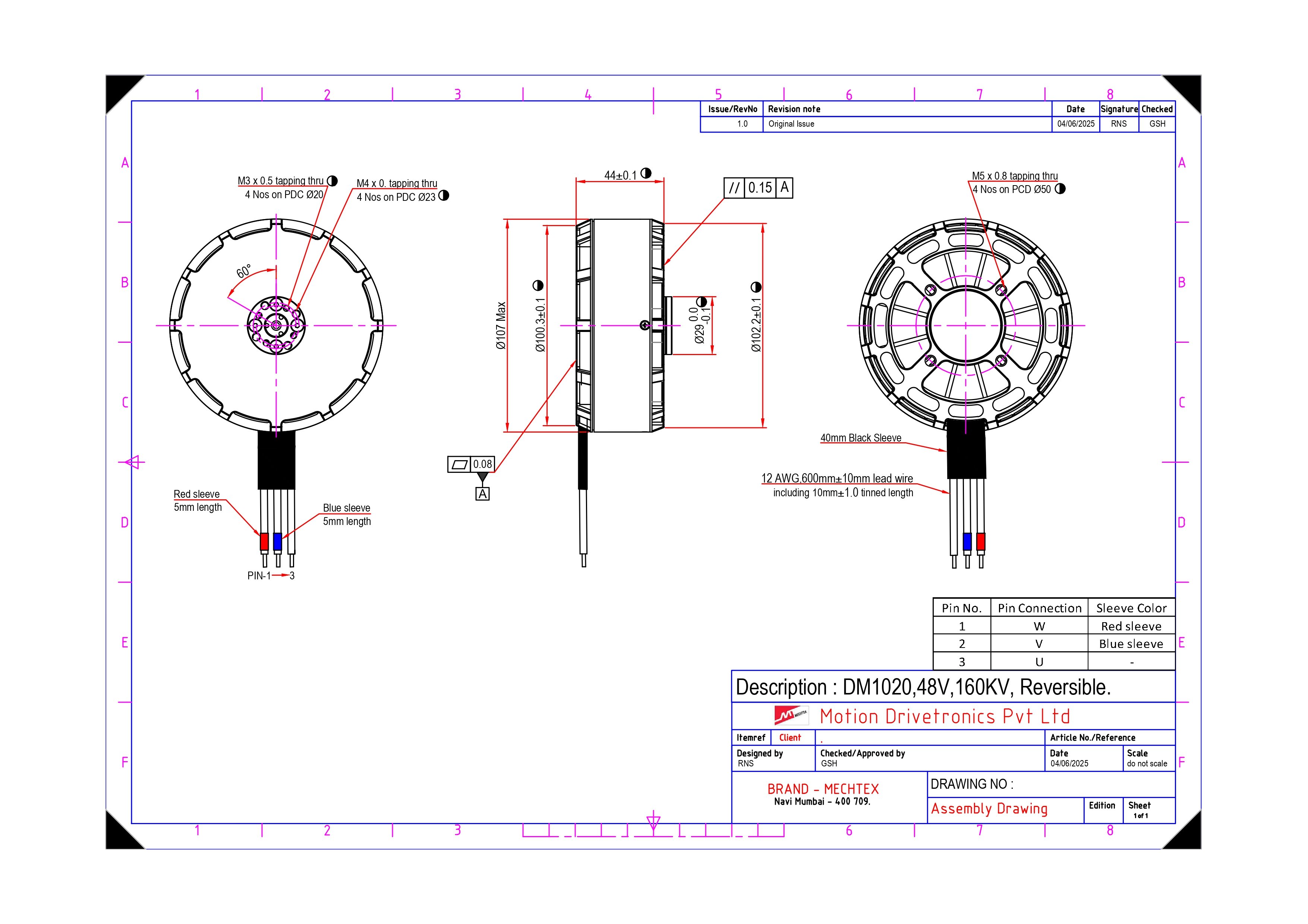

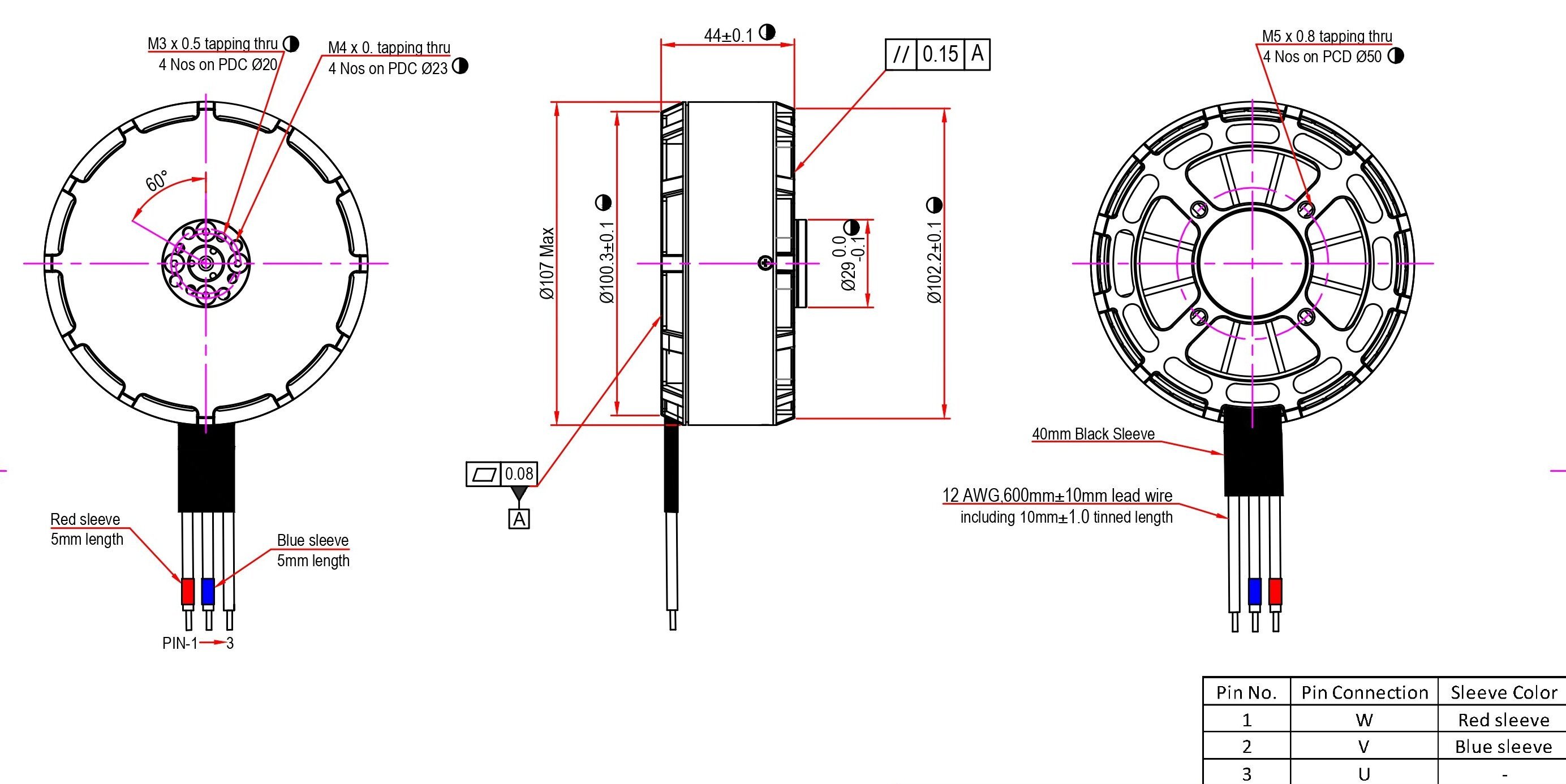

Dimensional Drawing
