Applications
Agriculture, Delivery, Defence, Surveillance, Mapping, Cinematography
Description
Mechtex DM3510 is a mini drone motor designed for maximum efficiency and power. It has a KV rating of 700 KV and a maximum thrust of 2578 gf, making it perfect for quick aerial manoeuvres. It has a rated voltage of 4S, which makes it compatible with a wide range of drone models.
Our lightweight BLDC drone motor weighs just 130 g to ensure the optimal flight performance of a drone. The compact size makes it easy to install on any drone model and makes it durable to endure all weather conditions.
Technical Data
| KV Rating | 700 |
| Voltage Range | 4S |
| Configuration | 12N-14P |
| Dimension (OD x Height) (mm) | 41.8 x 29.6 |
| Weight (g) | 130 |
| Propeller Size | 14 x 4.8 |
| Max Thrust (gf) | 2578 |
| Max Continuous Power (180S) (W) | 500 |
| Peak Current (A) | 30 |

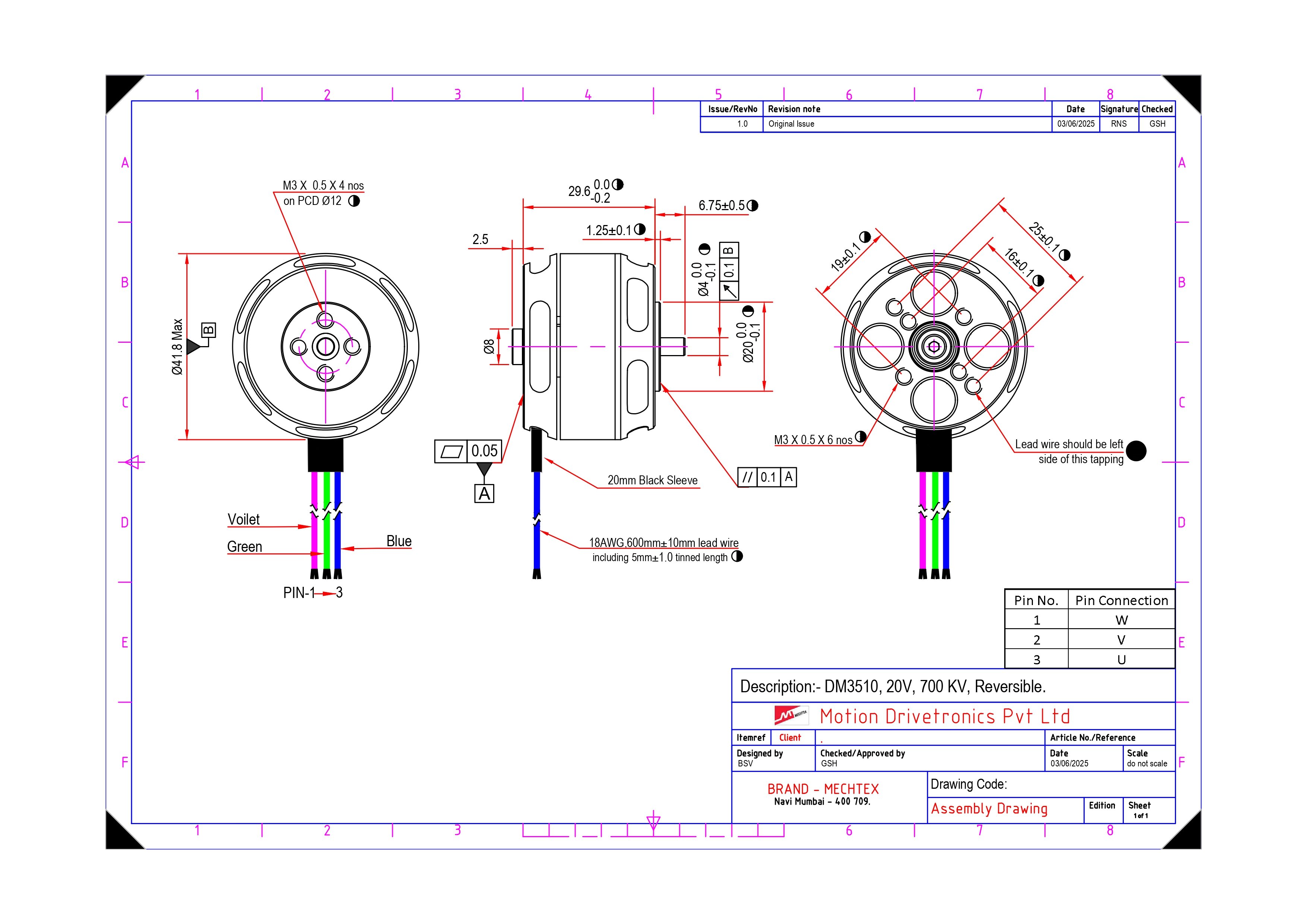

Dimensional Drawing
