Applications
Agriculture, Delivery, Defence, Surveillance, Mapping, Cinematography
Description
DM4006 is a highly efficient and powerful BLDC motor for drones. It has a KV rating of 380 KV and a maximum thrust of 1824 gf making it capable of delivering impressive performance and contributing to a smooth and stable flight experience.
It has an operating voltage of 4 - 6 S and a weight of only 72 g making it a lightweight design and ensuring that it does not add unnecessary weight to the drone, allowing for better maneuverability and longer flight times. This BLDC motor for drones is the perfect choice for enhancing the performance of your drone and taking your aerial photography and videography to new heights.
Technical Data
| KV Rating | 380 |
| Voltage Range | 4 - 6S |
| Configuration | 18N-24P |
| Dimension (OD x Height) (mm) | 44.4 x 21 |
| Weight (g) | 72 |
| Propeller Size | 14 x 4.8 |
| Max Thrust (gf) | 1824 |
| Max Continuous Power (180S) (W) | 380 |
| Peak Current (A) | 11 |

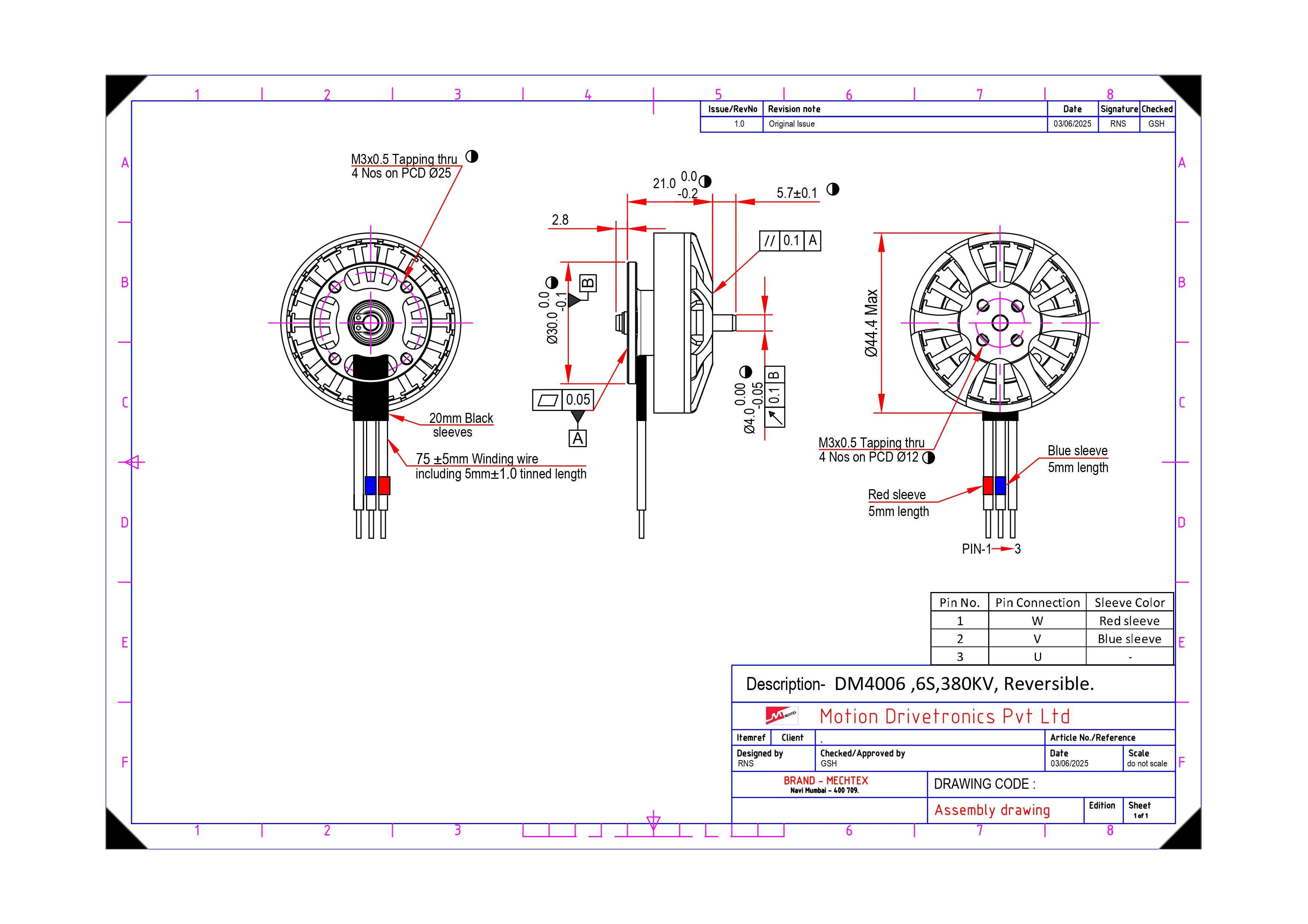

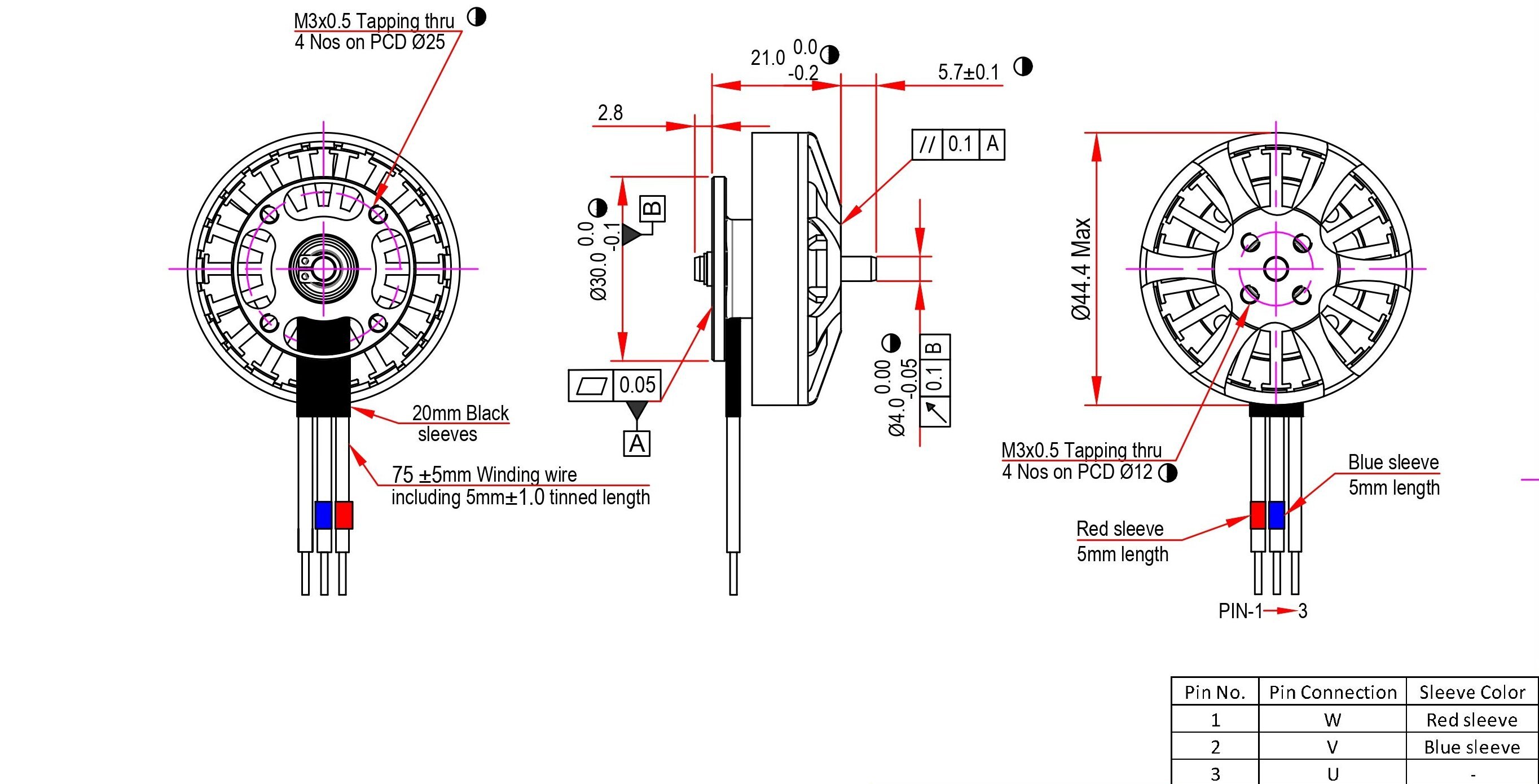

Dimensional Drawing
