Applications
Robotic Lawn Mover Machine, Telecom Antenna, Solar Cleaning Robots, Medical Equipment, Automotive, Robotics
Description
GB22K is a Compact Planetary Gearhead with 0.2Nm to 0.6Nm Gear Torque and up to 938.85 Gear Ratio. It can combined with various types of motors. It is specially designed to cater to precise and compact applications in a cylindrical frame with a center shaft. GB22K comes with plastic ring gear & all plastic gears. The output bearing is robust and is made of sintered bronze (ball bearing on special request).
The entire gearhead is permanently lubricated and therefore requires no maintenance. Brushed and Brushless DC Motors up to 24mm diameter are generally mounted on this gearhead to provide a compact. These gearboxes can combined with BLDC Motors as per requirement.
Standard Data
Gear type | Spur Gears |
Gear Torque | 0.1 To 0.6 Nm |
Axial Load | 15 N |
Radial force | 45 N |
Output Bearings | Sintered bronze ( Ball bearing on special request) |
Output shafts | Ø 6 mm(Others on special request) |
Ambient temperature operation | -15….+55°C (+80°C on special request #) |
Enclosure | IP 40 (As per IEC 60529) |
# Corresponding o/p torque rating of gearhead will be reduced.
Technical Data
Gearhead Data
Reduction | 3.71 | 5.18 | 13.73 | 19.2 | 26.85 | 35* | 50.89 | 71.16 | 99.51 | 139.14 | 188.61 | 263.73 | 369.76 | 515.63 | 720.99 | 938.85* | |
Number of stages | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | |
Torque | Nm | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |

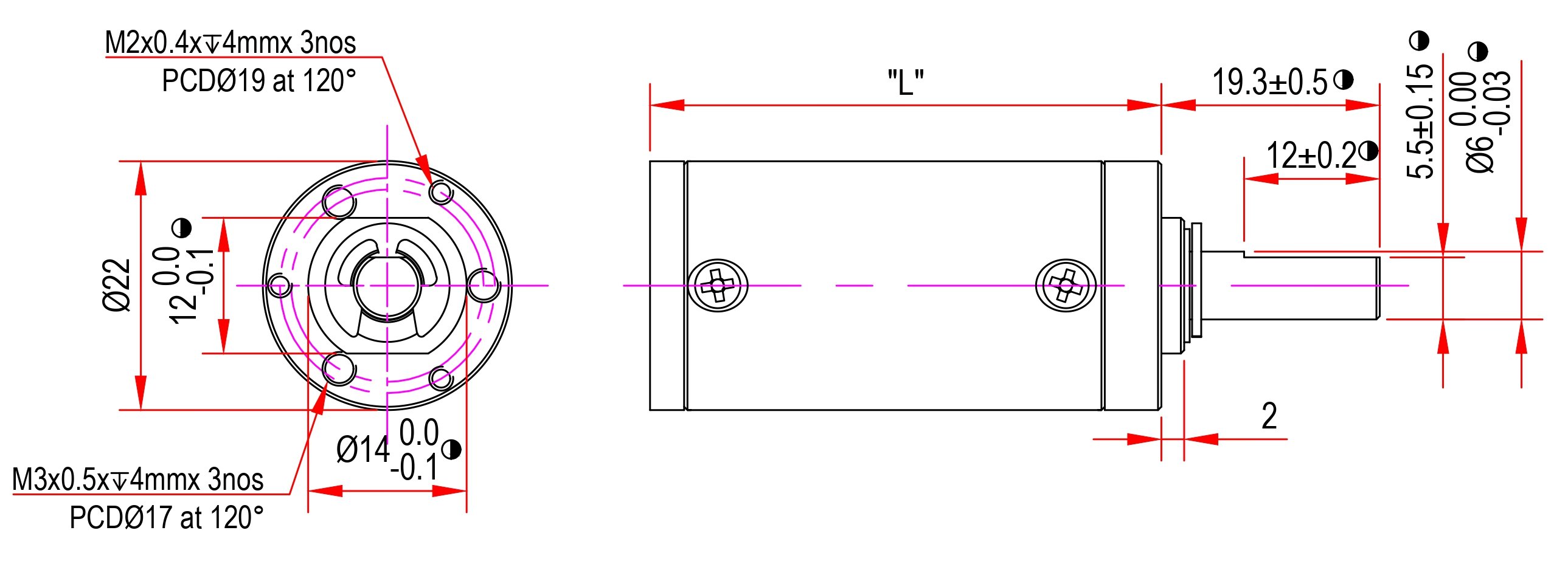

Gear Box Length (L) | mm | 27.2 | 27.2 | 33.2 | 33.2 | 33.2 | 33.2 | 39.2 | 39.2 | 39.2 | 39.2 | 45.2 | 45.2 | 45.2 | 45.2 | 45.2 | 45.2 |
Note: Ratios marked with * suffix available on special request
