Description
GB28P is a Cylindrical Planetary Gearhead with 0.1Nm to 2Nm Gear Torque and up to 938.85 Gear Ratio. It can combined with various types of Motors. It is specially designed to cater to precise and compact applications in a cylindrical frame with a center shaft. This is a planetary gearbox with the possibility of polyacetal gears in the first stage (for low noise) and the remaining stages being sintered metal or hardened metal (on special request). The output bearing is robust and is made of sintered bronze (ball bearing on special request).
The entire gearhead is permanently lubricated and therefore requires no maintenance. Brushed and Brushless DC Motors up to 30mm in diameter are generally mounted on this gearhead to provide a compact drive.
Standard Data
Gear type | Spur Gears | |
Gear Torque | Nm | 0.5 to 4 |
Axial Load | N | 15 |
Radial force | N | 50 |
Output Bearings | Sintered bronze (Ball bearing on special request) | |
Output shafts | mm | Ø 6(others on special request) |
Ambient temperature operation | °C | -15….+80 °C(+120°C on special request #) |
Enclosure | IP | 40 (As per IEC 60529) |
# Corresponding o/p torque rating of gearhead will be reduced.

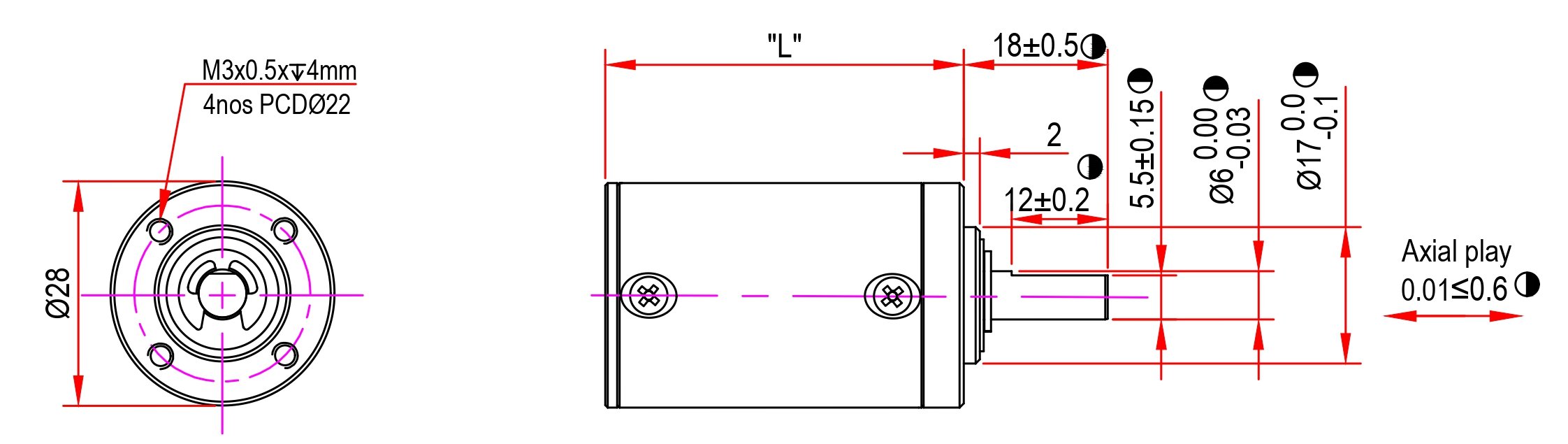

Technical Data
Gearhead Data
Reduction | 3.71 | 5.18 | 13.73 | 19.2 | 26.85 | 35* | 50.89 | 71.16 | 99.51 | 139.14 | 188.61 | 263.73 | 369.76 | 515.63 | 720.99 | 938.85* | |
Number of stages | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | |
Torque | Nm | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
Gear Box Length(L) | mm | 25.6 | 25.6 | 32 | 32 | 32 | 32 | 38.4 | 38.4 | 38.4 | 38.4 | 44.8 | 44.8 | 44.8 | 44.8 | 44.8 | 44.8 |
Note: Ratios marked with * suffix available on special request
