Applications
Robotic Lawn Mover Machine, Telecom Antenna, Solar Cleaning Robots, Medical Equipment, Automotive, Robotics
Description
GB36K is a Plastic Ring Gear Planetary Gearhead with 0.5Nm to 4Nm Gear Torque and with 36mm diameter. It can combined with various types of motors. It is specially designed to cater to precise and compact applications in a cylindrical frame with a center shaft.GB36K comes with plastic ring gear & all plastic gears.
The entire gearhead is permanently lubricated and therefore requires no maintenance. Brushed and Brushless DC Motors up to 42mm in diameter are generally mounted on this gearhead to provide a compact yet powerful drive.
Standard Data
Gear type | Spur Gears | |
Gear Torque | Nm | 0.5 to 2 |
Axial Load | N | 30 |
Radial Force | N | 45 |
Output Bearings | sintered bronze (Ball bearing on special request) | |
Output shafts | mm | Ø 8 (other on special request) |
Ambient temperature operation | °C | -15….+55°C (+80°C on special request #) |
Enclosure | IP | 40 (As per IEC 60529) |
# Corresponding o/p torque rating of gearhead will be reduced.
Technical Data
Gearhead Data:
Reduction | 3.71 | 5.18 | 13.73 | 19.2 | 26.85 | 35* | 50.89 | 71.16 | 99.51 | 139.14 | 188.61 | 263.73 | 369.76 | 515.63 | 720.99 | 938.85* | |
Number of stages | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | |
Torque | Nm | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 2 | 2 |

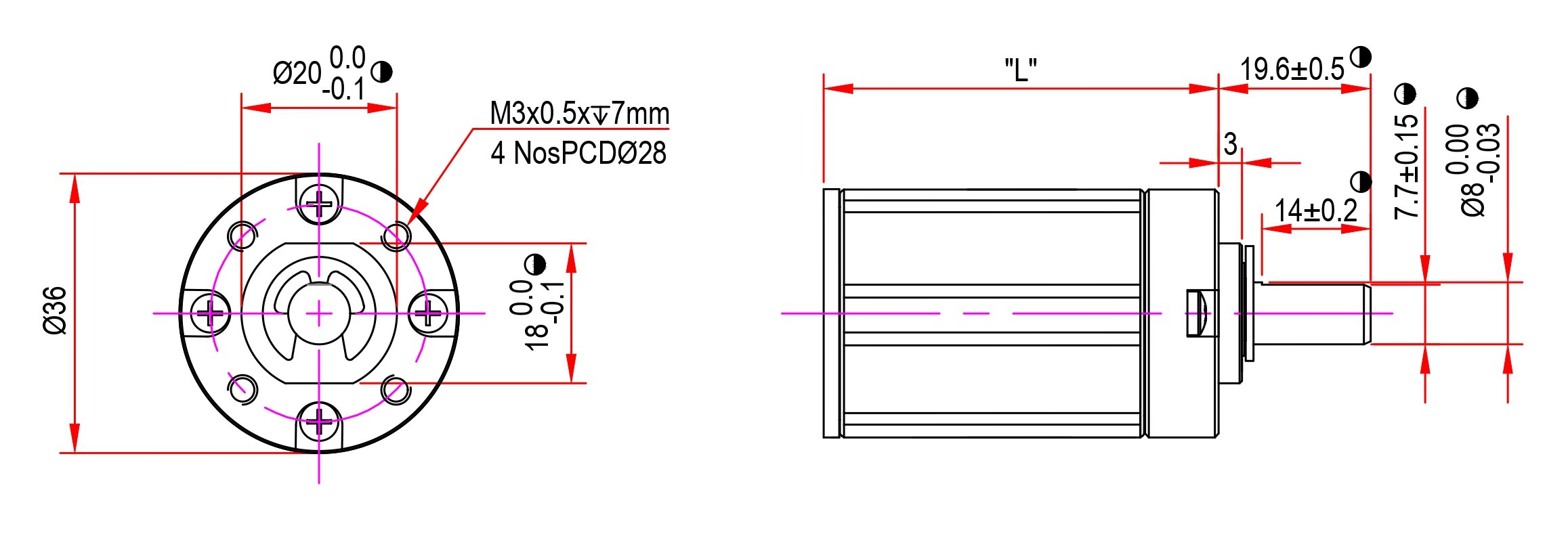

Gear Box Length (L) | mm | 24.4 | 24.4 | 30.8 | 30.8 | 30.8 | 30.8 | 37.2 | 37.2 | 37.2 | 37.2 | 43.6 | 43.6 | 43.6 | 43.6 | 43.6 | 43.6 |
Note: Ratios marked with * suffix available on special request
