Permanently Lubricated Planetary Gearhead
GB36P

GB36P


Permanently Lubricated Planetary Gearhead

Design

GB36P is a Permanently Lubricated Planetary Gearhead with 0.5Nm to 4Nm Gear Torque and with 36mm diameter. It can combined with various types of motors. It is specially designed to cater to precise and compact applications in a cylindrical frame with a center shaft. This is a planetary gearbox with the possibility of polyacetal gears in the first stage (for low noise) and the remaining stages being sintered metal or hardened metal (on special request). The output bearing is robust and is made of ball bearing (Sintered on special request).

The entire gearhead is permanently lubricated and therefore requires no maintenance. Brushed and Brushless DC  Motors up to 42mm in diameter are generally mounted on this gearhead to provide a compact yet powerful drive.

Standard Data
Gear type   Spur Gears
Gear Torque Nm 0.5 to 5
Axial Load N 30
Radial force N 100
Output Bearings   sintered bronze (Ball bearing on special request)
Output shafts mm Ø 8( others on special request)
Ambient temperature operation °C -15….+80°C (+120°C on special request  #)
Enclosure IP 40 (As per IEC 60529)

# Corresponding o/p torque rating of gearhead will be reduced.

Technical Data

Gearhead Data:

Reduction   3.71 5.18 13.73 19.2 26.85 35* 50.89 71.16 99.51 139.14 188.61 263.73 369.76 515.63 720.99 938.85*
Number of stages   1 1 2 2 2 2 3 3 3 3 4 4 4 4 4 4
Torque P Series Nm 0.5 0.5 0.8 0.8 0.8 0.8 2 2 2 2 5 5 5 5 5 5
Gear Box Length (L) mm 23.6 23.6 30 30 30 30 36.4 36.4 36.4 36.4 42.8 42.8 42.8 42.8 42.8 42.8
Note: *Raito on special request

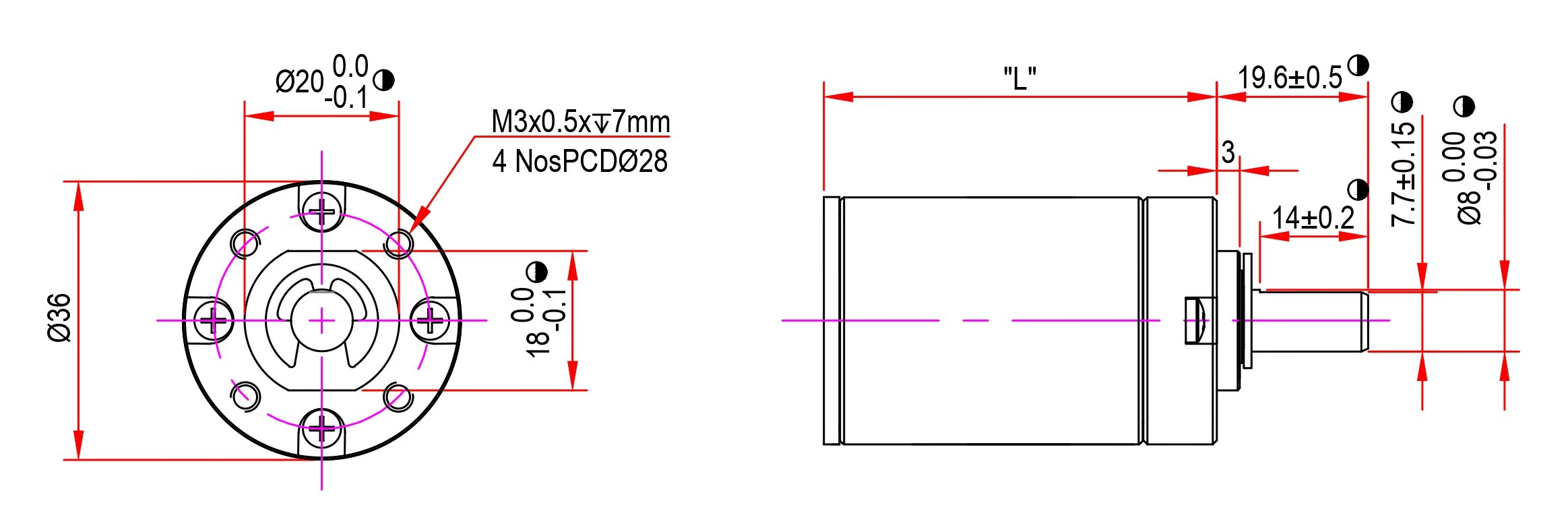

Dimensional Drawing
