Description
GB52P is a high-performance 52mm planetary gear system, offering a gear torque range of 5Nm to 25Nm and a maximum gear ratio of 938.85. Constructed entirely with metal gears, this robust gearbox is ideal for space-constrained applications such as telecom antennas and solar cleaning robots.
Its compact design ensures reliability and efficiency in demanding environments. Additionally, the GB52P can be seamlessly integrated with BLDC motors and provides a versatile solution for various mechanical and automation needs.
Standard Data
| Gear type | Spur Gears | |
| Gear Torque | Nm | 5 to 25 |
| Axial Load | N | 30 |
| Radial force | N | 450 |
| Output Bearings | Ball bearing | |
| Output shafts | mm | Ø 12 (others on special request) |
| Ambient temperature operation | °C | -15….+80 °C(+120°C on special request #) |
| Enclosure | IP | 40 (As per IEC 60529) |
# Corresponding o/p torque rating of gearhead will be reduced.
Technical Data
Gearhead Data:
| Reduction | 3.71 | 5.18 | 13.73 | 19.2 | 26.85 | 35* | 50.89 | 71.16 | 99.51 | 139.14 | 188.61 | 263.73 | 369.76 | 515.63 | 720.99 | 938.85* | |
| Number of stages | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Torque | Nm | 5 | 5 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 25 | 25 | 25 | 25 | 25 | 25 |
| Gear Box Length | mm | 44.4 | 44.4 | 56.4 | 56.4 | 56.4 | 56.4 | 68.4 | 68.4 | 68.4 | 68.4 | 80.4 | 80.4 | 80.4 | 80.4 | 80.4 | 80.4 |
Note: Ratios marked with * suffix available on special request

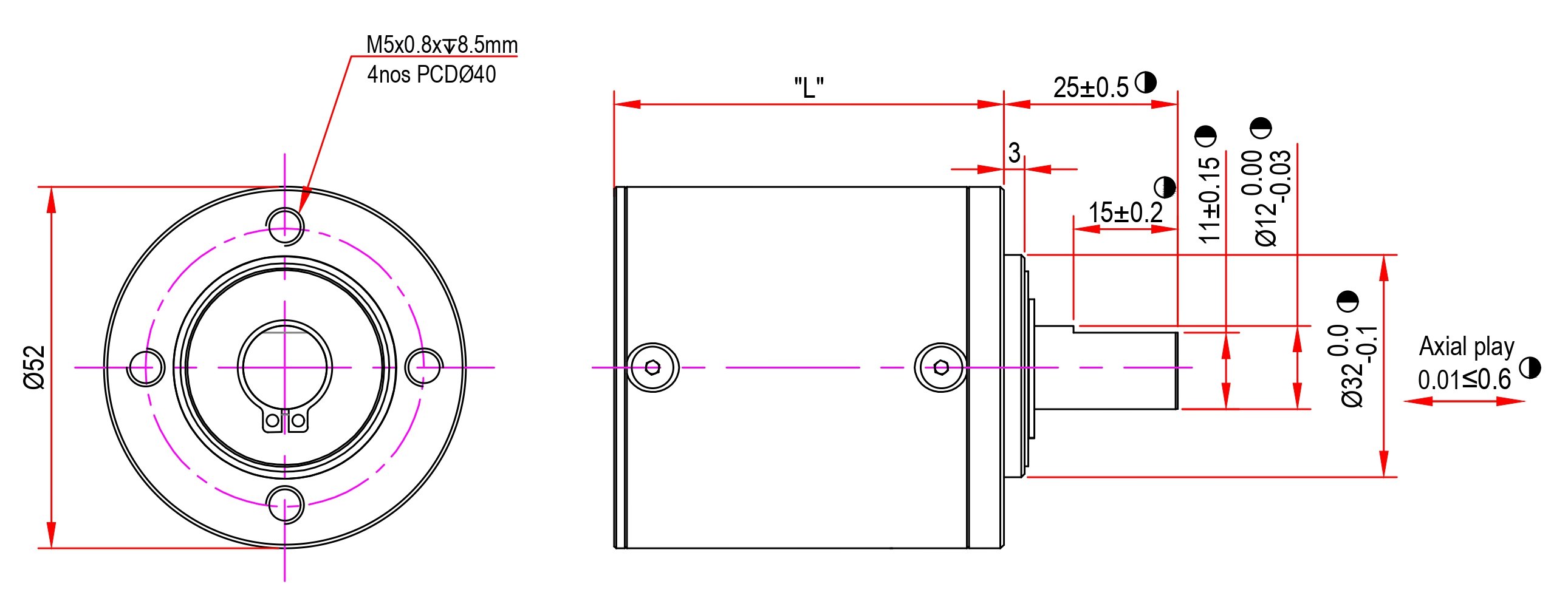

Dimensional Drawing
